Storefront elevation with automated dimensioning generated by Revit plugin

Revit Plugins

Automating architectural drafting workflows with C# and the Revit API

The Problem

Architects at Trinam Design spent significant time on repetitive drafting tasks in Autodesk Revit — placing elements, generating schedules, and formatting drawings. These manual processes were error-prone and slowed down project delivery.

The Solution

I developed custom C# plugins for Autodesk Revit that automated repetitive drafting workflows, including element placement, schedule generation, and drawing formatting. The plugins integrated with Revit's API and WinForms UI, reducing manual work and improving accuracy across the team's projects.

Floor plan with automated purple dimension markers — Automated floor plan dimensioning — plugin adds all measurements in one click

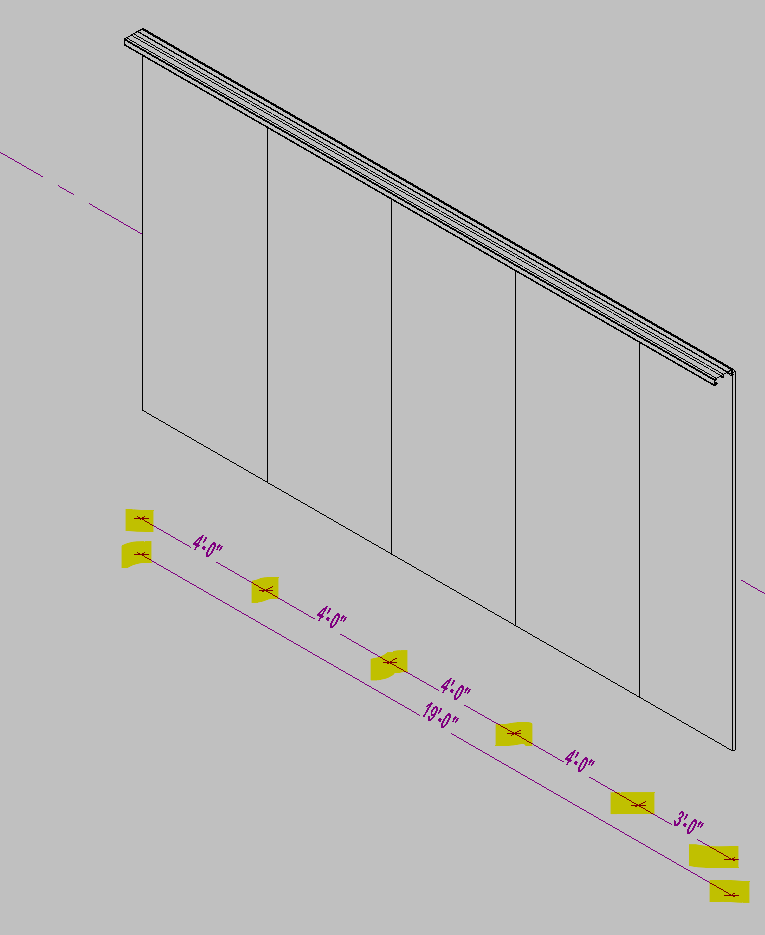

3D curtain wall with automated grid dimensioning — 3D curtain wall grid dimensioning with automated spacing calculations

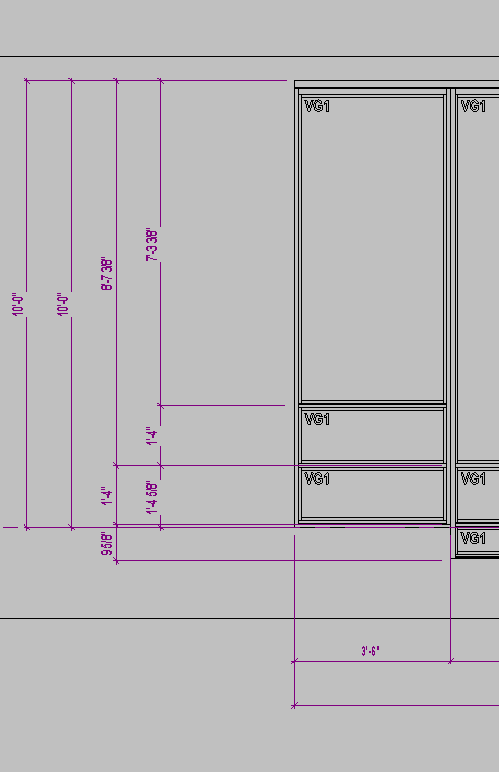

Shop window elevation with automated dimensions — Shop elevation with plugin-generated dimension chains and panel labels

Tech Stack

C#.NET FrameworkRevit APIWinFormsVisual Studio
